Introduction:

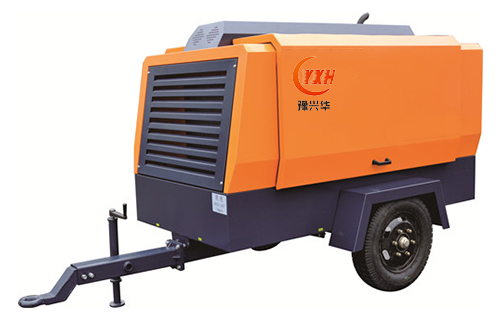

This series of engine adopts the six-cylinder diesel engine produced by dongfeng cummins, and is equipped with Hanbell reversing head, which greatly improves its reliability and economy. Excellent comprehensive performance, widely used in hydropower, railways, ship repair, mines, highways, shotcrete, oil and gas fields, Wells drilling, municipal construction, cable laying and other related fields.


Features:
1. Status monitoring
Operating interface according to the main and secondary separated instrument design, the interface is more concise, clear, the user is more handy for the operation.

2. European wing design
European wing design, beautiful appearance, convenient maintenance, repair.

3. Low transportation cost
Small size, light weight, low noise; It is light in shape and convenient for transportation, with less floor space, and can be moved in and out freely in narrow working conditions to reduce transportation costs.

4. Large-capacity oil tank
Equipped with large capacity oil tank, can work more than 8 hours continuously, to meet the needs of a shift.

Technical parameters:

Model		HG300M-10	HG300L-8	HG400M-13	HG425M-10	HG450L-8
Compressor	Air delivery(m3/min)	8.5	10	10	11	13
	Work pressure(bar)	10	8	13	10	8
	Compression level	Single
	Tank capacity(L)	100	100	100	100	100
	Screw oil capacity(L)	48	48	54	54	54
Diesel Engine	Manufacturer	YUCHAI	YUCHAI	CUMMMINS	CUMMMINS	CUMMMINS
	Model	YC4B115BZ	YC4B115BZ	6BT5.9-C150	6BT5.9-C150	6BT5.9-C150
	Cylinder no.	4	4	6	6	6
	Rated Power(kw)	84	84	110	110	110
	Rotation speed(rpm)	2400	2400	2400/2300/2200	2400/2300/2200	2400/2300/2200
	Idle speed(rpm)	1400	1400	1400	1400	1400
	Engine oil(L)	9-12	9-12	12-18	12-18	12-18
	Coolant capacity(L)	20-24	20-24	25-28	25-28	25-28
	Fuel capacity(L)	120-150	120-150	120-160	120-160	120-160
Compressor Unit	Battery	6-QW-105	6-QW-105	6-QW-135	6-QW-135	6-QW-135
	Interface size	1-R1’’  1-R1.1/2’’
	Driven method	Direct connected
	Length(mm)	2880	2880	3220	3220	3220
	Width(mm)	1740	1740	1850	1850	1850
	Height(mm)	1760	1760	1850	1850	1850
	Weight(kg)	1950	1950	2450	2450	2450
	Walking way	Two wheel	Two wheel	Two wheel	Two wheel	Two wheel
