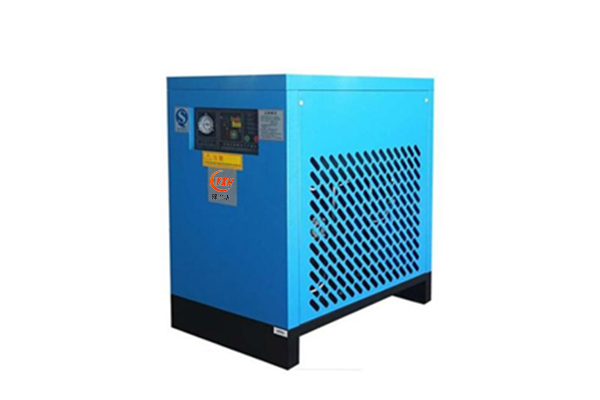

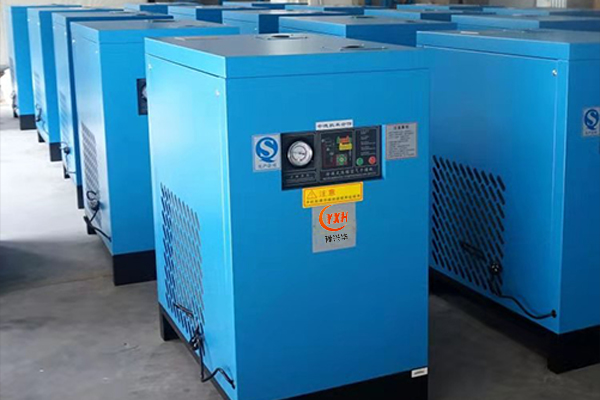

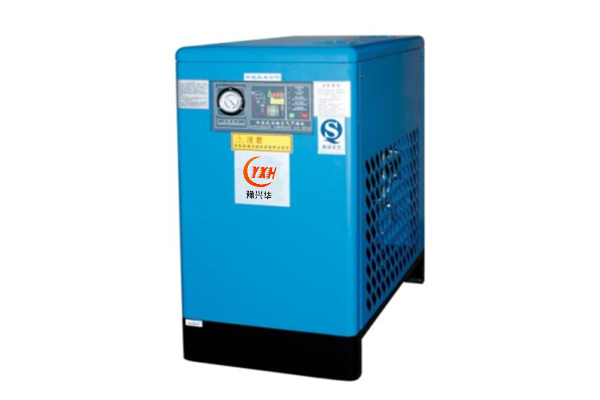

Refrigerated Compressed Air Dryer
33 Items in Stock
Working Condition Technical Data: ◇Inlet temperature):80℃ ◇Cooling method: Air-cooling ◇Design dew point:2～10℃ ◇Refrigerant: R22 ◇Inlet pressure: 0.6～1.0MPa◇Pressure drop:0.02MPa Specification: Model HAD-1HTF HAD-2HTF HA
Working Condition Technical Data:
◇Inlet temperature):≤80℃
◇Cooling method: Air-cooling
◇Design dew point:2～10℃
◇Refrigerant: R22
◇Inlet pressure: 0.6～1.0MPa ◇Pressure drop:≤0.02MPa
Specification:
◇Inlet temperature):≤80℃
◇Cooling method: Air-cooling
◇Design dew point:2～10℃
◇Refrigerant: R22
◇Inlet pressure: 0.6～1.0MPa ◇Pressure drop:≤0.02MPa
Specification:
| Model | HAD-1HTF | HAD-2HTF | HAD-3HTF | HAD-6HTF | HAD-8HTF | HAD-10HTF | HAD-13HTF | HAD-15HTF | HAD-20HTF | HAD-25HTF | HAD-30HTF | HAD-40HTF |
| Capacity(Nm3/min) | 1.2 | 2.4 | 3.8 | 6.5 | 8.5 | 10.7 | 13.5 | 18 | 25 | 28 | 33 | 45 |
|
Voltage (V/Hz) |
220/50 | 380/50 | ||||||||||
|
Compressor power (HP/KW) |
1/0.85 | 1/0.85 | 1.25/1.0 | 1.5/1.25 | 1.5/1.25 | 3/2.5 | 3/2.5 | 3.5/3 | 5.0/4.0 | 6.0/4.5 | 6.5/5 | 10/7.5 |
| Fan power(W) | 55 | 90 | 150 | 190 | 190 | 150x2 | 150x2 |
90x2 150x2 |
90x2 190x2 |
90x3 150x3 |
150x3 190x3 |
190x3 240x3 |
| Air connection | ZG1 | ZG1 | ZG1.5 | ZG1.5 | ZG1.5 | ZG2 | ZG2 | DN65 | DN80 | DN80 | DN100 | DN100 |
| Net weight(kg) | 48 | 78 | 105 | 125 | 130 | 180 | 192 | 240 | 280 | 380 | 480 | 620 |
| Length(mm) | 630 | 700 | 850 | 880 | 880 | 1180 | 1180 | 1360 | 1360 | 1670 | 1840 | 2000 |
| Width(mm) | 450 | 450 | 500 | 550 | 550 | 670 | 670 | 710 | 710 | 750 | 850 | 950 |
| Height(mm) | 640 | 830 | 920 | 1020 | 1020 | 1080 | 1080 | 1210 | 1210 | 1575 | 1645 | 1740 |
1. Advanced technology.
2. Complete refrigeration system configuration.
3. Energy saving - advanced heat exchanger design, counter-current structure, good temperature return, no condensation. The air heat exchanger adopts full corrugated copper tubes with inner and outer walls to increase the utilization rate of cooling capacity. The evaporator is hydrophilic thin wall red copper tube with pure aluminum fins, and the heat transfer efficiency of the disturbing structure is high.
4. Complete gas-liquid separation. The filter type gas-liquid separator is adopted, and the American HANKISON filter element is installed inside. The gas-liquid separation effect is complete, avoiding the secondary evaporation of water and ensuring the important role of the drying effect of the cold dryer. It has a higher separation efficiency than the cyclone separator, and the separation efficiency reaches 99.99%.
5. Excellent sewage system. Cooling and drying machine structure with three or more drainage, timely and effectively discharge a lot of condensed water and oil, so as to ensure the clean and dry system and air at the same time also reduce the load of the system.
6. Unique chassis and exhaust design, no negative pressure countercurrent, good heat dissipation effect, fan maintenance convenience.
7. A variety of forms (single, set, joint control, PC board, frequency conversion, etc.) of the control line, suitable for different users.
8. Water condenser for low-fin copper tube, slow flow, multi-stroke, high heat transfer efficiency, long-term use is not easy to scale.
2. Complete refrigeration system configuration.
3. Energy saving - advanced heat exchanger design, counter-current structure, good temperature return, no condensation. The air heat exchanger adopts full corrugated copper tubes with inner and outer walls to increase the utilization rate of cooling capacity. The evaporator is hydrophilic thin wall red copper tube with pure aluminum fins, and the heat transfer efficiency of the disturbing structure is high.
4. Complete gas-liquid separation. The filter type gas-liquid separator is adopted, and the American HANKISON filter element is installed inside. The gas-liquid separation effect is complete, avoiding the secondary evaporation of water and ensuring the important role of the drying effect of the cold dryer. It has a higher separation efficiency than the cyclone separator, and the separation efficiency reaches 99.99%.
5. Excellent sewage system. Cooling and drying machine structure with three or more drainage, timely and effectively discharge a lot of condensed water and oil, so as to ensure the clean and dry system and air at the same time also reduce the load of the system.
6. Unique chassis and exhaust design, no negative pressure countercurrent, good heat dissipation effect, fan maintenance convenience.
7. A variety of forms (single, set, joint control, PC board, frequency conversion, etc.) of the control line, suitable for different users.
8. Water condenser for low-fin copper tube, slow flow, multi-stroke, high heat transfer efficiency, long-term use is not easy to scale.
