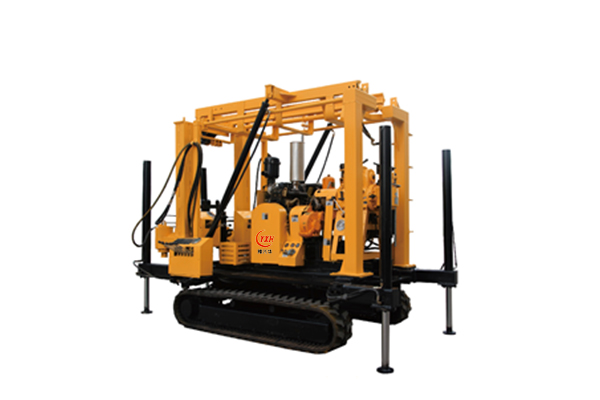

Main features:
1. Drilling rig adopts automatic telescopic derrick, supported with two high strength oil cylinder, a set of hydraulic valve control rig pitch, operating time, safe and reliable, the maximum to create benefits for the user.

2. The chassis is made of rubber track with light weight, which can reduce the noise of vehicle walking mechanism, reduce the vibration of vehicle body, significantly reduce fuel consumption, and can be used on urban roads without damaging the road surface.

3. The chassis is equipped with hydraulic high support legs, which can be used for leveling of drilling rig and loading and unloading vehicles, and can be used as auxiliary support when working.

4. Use 24v electric start engine, reduce the labor intensity of operators, especially in cold season, diesel engine starting difficulty, showed significantly more advantages.

5. The machine supporting BW160 mud pump, pump flow, pressure, easy maintenance, spare parts throughout the country to buy.

6. Optional equipped with hydraulic screw machine (75-168 mm), improve the work efficiency and reduce labor costs.

Main technical parameters：

Model	XYD-130	XYD-180	XYD-200
Drilling depth(m)	130	180	200
Open hole dia.(mm)	220	220	325
End hole dia.(mm)	75	75	75
Drill rod dia.(mm)	42-60	42-60	42-60
Drill angle(°)	90-75	90-75	90-75
Matching power（kW）	13.2	13.2	15
Weight （kg）	3350	3400	3600
Dimension（mm）	3.8*1.95*2.7	3.8*1.95*2.7	3.8*1.95*2.7
Vertical spindle speed（r/min）	142/285/570	130/300/480/730/830/1045	64/128/287/557
Vertical spindle stroke(mm)	450	450	450
Track specification（mm）	350*90*48 (section)	350*90*48(section)	350*90*48(section)
Climbing angles(°)	20°	20°	20°
Walking speed（km/H)	10	10	10
Hydraulic leg height（mm）	1300	1300	1300
Rated load(ton)	2	2	5
Drill tower structure	full hydraulic	full hydraulic	full hydraulic
Height(m)	6	6	6
Dispalcement(L/min)	160	160	160
Max.pressure（Mpa)	1.3	1.3	1.3
Reciprocating times(time/min)	165	165	165
Inlet hose dia.（mm）	51	51	51
Outlet hose dia.（mm）	32	32	32
