Feature:
These new high pressure machines, appearing the best effect of the impactor perfectly, have the characteristics of high efficiency, high cost performance, meet the market's constant pursuit of efficiency, and will bring new mining technology reform.

1. Large displacement and high air pressure
This machine also has the characteristics of large plastic discharge and high wind pressure, and can precisely and perfectly play the best linyi point of the impactor, so that customers will no longer worry about unstable flow and insufficient pressure in the use process.
It is more capable of supporting two semi-hydraulic drilling RIGS in the way of one-tow two, which meets the market's continuous pursuit of efficiency.

2. High reliability
The main zero that are used in the surrounding and outside of the well-known enterprise products, quality can be integrated. Constant pressure and stable flow;
Achieve continuous automatic regulation of displacement from 0 to 100%, highly efficient, energy-saving and stable; Economy, no pollution, low noise.

3. Comprehensive monitoring
The running state of the equipment can be fully monitored; According to the control panel in Chinese and English, the running state of the equipment is clear at a glance.

4. High-end configuration
Each part of the machine adopts high storage configuration to ensure the high reliability of the equipment.

Main technical parameters:

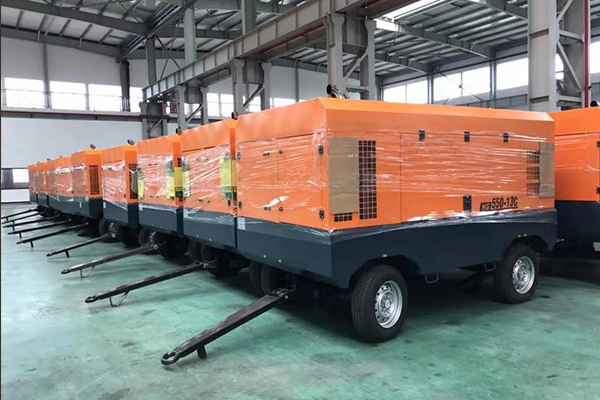

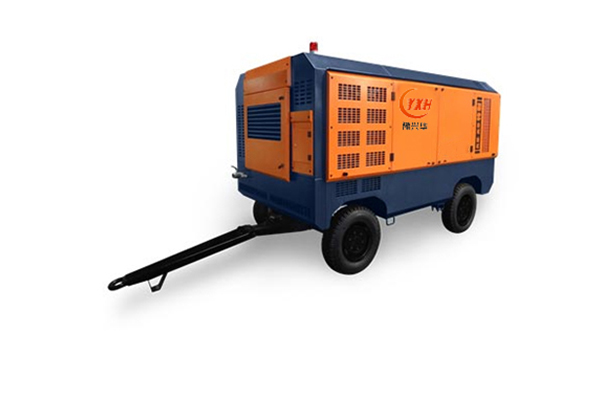

Portable Diesel Screw Air Compressor
Model		HG550-13C	HG650-16C	HG700-18C	HG800-14C	HG950-20C
Compressor	Air delivery(m3/min)	15	17	18	22.5	26
	Work pressure(bar)	13	16	18	14	20
	Compression level	Single				Two stage
	Tank capacity(L)	130	130	189	189	211
	Screw oil capacity(L)	65	80	105	105	137
Diesel Engine	Manufacturer	CUMMMINS
	Model	6BTA5.9-C180	6CTA8.3-C260			6LTTA8.9-C360
	Cylinder no.	6	6	6	6	6
	Rated Power(kw)	132	194	194	194	265
	Rotation speed(rpm)	2200	2200	1900	1900	2200
	Idle speed(rpm)	1400	1400	1400	1400	1400
	Engine oil(L)	18	24	24	24	24
	Coolant capacity(L)	45	60	60	60	60
	Fuel capacity(L)	210	350	380	380	550
Compressor Unit	Battery	6-QW-135MF*2				6-QW-165MF*4
	Interface size	1-G2’’  1-G1’’
	Driven method	Coupling Direct Connected
	Length(mm)	3400	4660	3980	3980	4385
	Width(mm)	1690	1980	1980	1980	2290
	Height(mm)	2200	2210	2320	2320	2530
	Weight(kg)	3200	3280	4500	4500	5500
	Walking way	Four wheel	Two wheel	Four wheel	Four wheel	Four wheel
