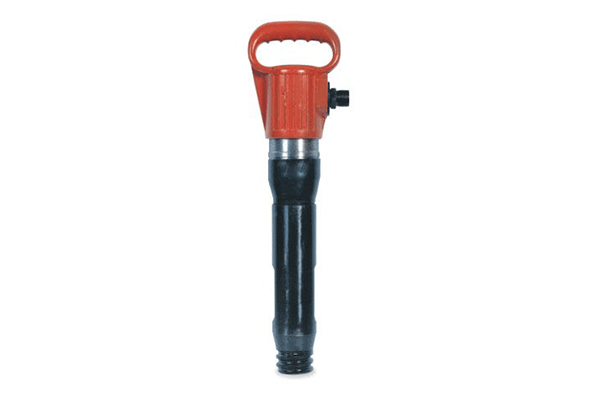

Pneumatic Air Pick
33 Items in Stock
Introduction: Using compressed air as the power tool, the compressed air is distributed in two ends of the cylinder body by tubular distribution valve in turn, so that the hammer body carries out the complex impact movement, impact the pick
Introduction:
Using compressed air as the power tool, the compressed air is distributed in two ends of the cylinder body by tubular distribution valve in turn, so that the hammer body carries out the complex impact movement, impact the pick bit end, so that the pick bit into the rock or ore layer, until the split into pieces.
Application:
Pneumatic picks are mainly used for reinforced concrete construction, cement, frozen soil, ice, soft ore, soft rock, road construction broken operations.
Scope of use:
1. Mining soft rock;
2, coal mining, planing column foot pit, open ditch;
3, construction and installation of broken concrete, frozen soil and ice
Application:
Pneumatic picks are mainly used for reinforced concrete construction, cement, frozen soil, ice, soft ore, soft rock, road construction broken operations.
Scope of use:
1. Mining soft rock;
2, coal mining, planing column foot pit, open ditch;
3, construction and installation of broken concrete, frozen soil and ice
Parameter:

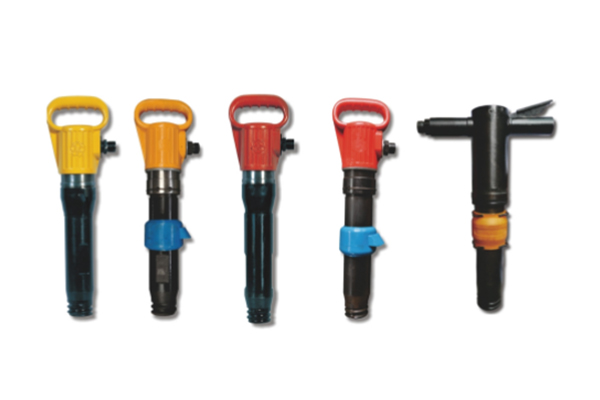

| Parameter： | HG10&HG11 | HG15&HG16 | HG20 |
| Whole weight(kgS) | 10.4 | 12.5 | 20 |
| Total length(mm) | 570 | 600 | 550 |
| Pituitary trip(mm) | 155 | 185 | 200 |
| Using air pressure(Mpa) | 0.4-0.63 | 0.4-0.63 | 0.63 |
| Gas consumption(L/S) | ≤26 | ≤27 | ≤28 |
| Impact Frequency(mm) | ≥16.5 | ≥17.5 | ≥16 |
| Tracheal diameter(mm) | 16 | 16 | 19 |
| Pick brazing specification | dia.24*70 | dia.24*70 | dia.30*87 |
