Introduction:

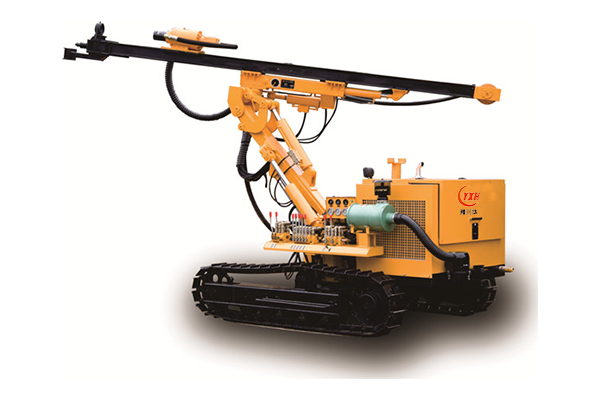

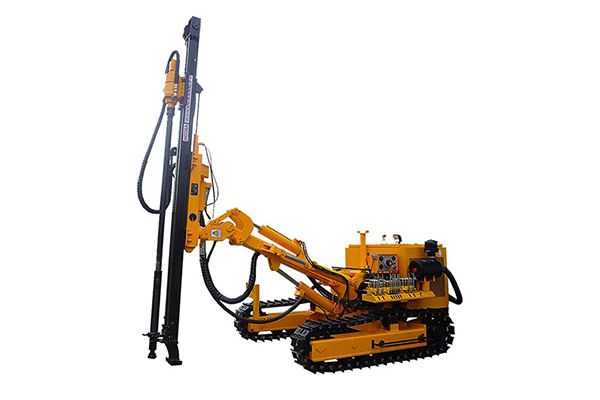

The HC726 is a tracked drilling rig between a light and heavy DTH rig. Walking hydraulic drill rig, rotation, and change the Angle of drilling. It can be used in combination with medium-pressure portable screw air compressor and medium-high DTH hammer. High performance, affordable, low cost.

Features:

1.High torque required low speed hydraulic motor drive torque device output drill rig.
2. More stable cylinder thrust and lower failure rate.
3. Double phase filtering device effectively ensures the safety of the diesel engine intake, prolong the service life of diesel engine.
4. Constantly monitor the hydraulic system pressure and propulsion pressure of drilling rigs to ensure the stable and efficient operation of drilling rigs.
5. Adopt domestic famous brand multi-way control valve, excellent performance and convenient operation.
6. Reliable crawler device, ensure the reliability of the drilling rig.

Main technical parameters:

Model	HC726B1	HC726B2
Rock hardness	f=6-25	f=6-25
Borehole dia.(mm)	83-115	85-130
Borehole depth(m)	30	30
Single climbing ability	30°	30°
Propelling way	Cylinder chain	Cylinder chain
Max.lifting force(kN)	15	15
Rotary torque(N.m)	1300	1700
Rotary speed(r/min)	30-90	30-90
Working Pressure(Mpa)	0.7-1.6	0.7-1.6
Air consumption(m3/min)	7-15	7-15
Diesel power(kw)	40	40
Drill arm horizontal swing Angle	Left 35 Right 35	Left 35 Right 35
Walking speed(km/h)	2.5	2.5
Ground clearance(mm)	300	300
Dimension(mm)	5200*2100*2000	5200*2100*2000
Weight(kg)	4000	4000
