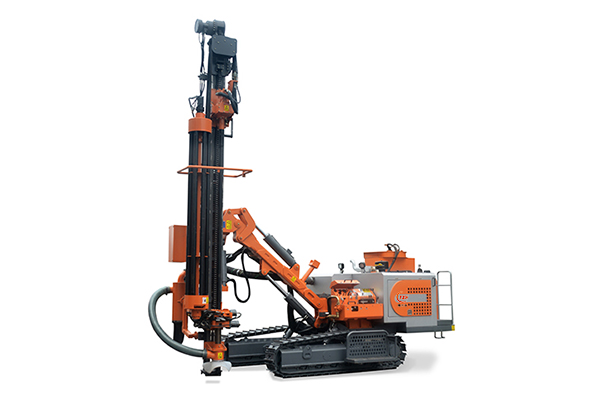

YD355RHS
33 Items in Stock
YD355 Technical Parameters Engine manufacturer Cummins Max.RPM 200 Engine Model 4BTA3.9-C125 Fuel Tank Capacity 120 L Rated Power 92KW DTH hammer 4 inch / 5 inch Hole diameter range 110 - 152 mm Rotation Torque 3,500 Nm Hole Depth 21m Feed
| YD355 Technical Parameters | |||
| Engine manufacturer | Cummins | Max.RPM | 200 |
| Engine Model | 4BTA3.9-C125 | Fuel Tank Capacity | 120 L |
| Rated Power | 92KW | DTH hammer | 4 inch / 5 inch |
| Hole diameter range | Ø 110 - 152 mm | Rotation Torque | 3,500 Nm |
| Hole Depth | 21m | Feed type | Cylinder&Rope |
| Pipe Size | Ø76 mm | Travel distance | 3280mm |
| Pipe Length | 3m | Max. Feed speed | 0.6m/s |
| No of Pipes stored | 6+1 | Max.lift force | 40kN |
| Beam type | Single straight | Max.feed force | 21kN |
| Total feed beam length | 5,030mm | Ground Clearance | 380mm |
| Extension distance | 1,200mm | Max.climbing ability | 30°(add winch@＞20°) |
| Traction force | 93kN | Tramming speed | High 4km/h,Low 2 km/h |
| Track oscillation | ±10° | Weight | 6,500kg |
| Dimension(L*W*H) | 7,000*2,300*2,500mm | ||
YD355 leads innovation with the most advanced technology, pursuing high efficiency, energy saving, environmental protection and safety. The new positioning system and lead separation DTH drilling rig are adopted to provide the requirements of high efficiency,energy saving and environmental protection, and greatly reduce the operating cost.
Features:
1. Two tramming operation platforms convenient long distance tramming.2. High efficiency dust collection system high efficient two stage dust collector with powerful suction and large filtration area for excellent dust removal.
3. Label hose for easy maintenance and troubleshooting.
4.High strength heavy duty feed beam New design positioning system, easier for operation in the worst situation. Cylinder &Rope feed mechanism for smooth operation. Cycloid rotation motor for powerful rotation torque nylon slide piece for longer feed beam service life.
5. Cummins Engine: Cummins diesel engine and global warranty.
6. Ergonomic control console new layout design for easier operation.
7. Three stage filters better protection for engine.
8. New design protection cover convenient maintenance and services.
9. Standard tramming system Standard track tramming system for up to 4 km/h speed oscillated track frame for better off road capabilities.
