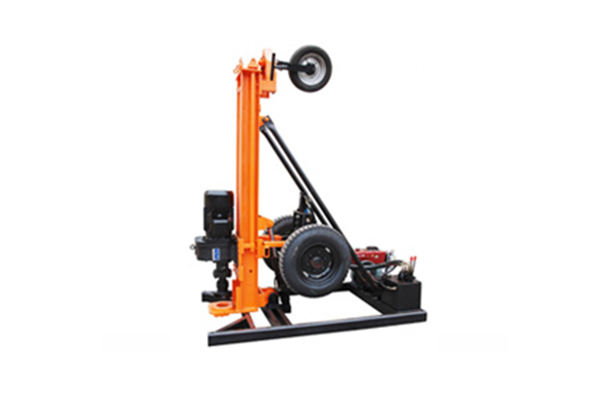

KQD165Z electric downhole drilling rig is a drilling equipment developed according to the market demand. It is mainly used simple and small diameter middle and deep water wells. It has the characteristics of low cost and convenient movement. High power 11 kw motor drive gear box mechanism for rotation, large cylinder diameter cylinder to promote and lift. It has the characteristics of large rotary torque and strong lifting force. The convenient hydraulic motor drives the drive axle to walk, convenient to move in a short distance and small space, reducing labor intensity.

KQD165Z Technical Parameters

Rock hardness	f=6-20
Hole dia.	90-160mm
Drill depth	80m
Drill pipe specifications	φ76×1.5m（φ89×1.5m）
Motor power	11Kw
Rotary speed	60r/min
Rotary torque	1600N
Diesel power	8.8kW/2300Rpm
Working air pressure	0.7-1.4MPa
Air consumption	220-280L/S
Max. propulsive force	12000N
Self-travel speed	2.2Km/h
