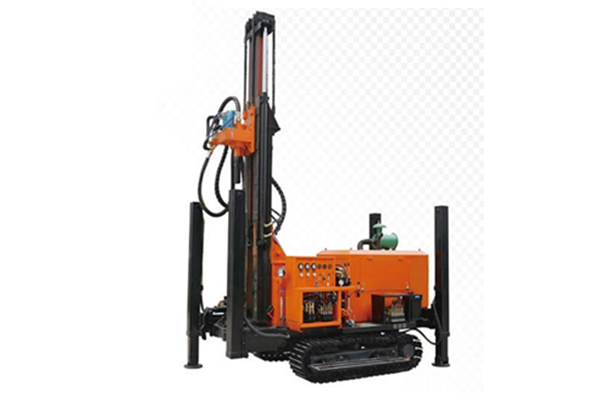

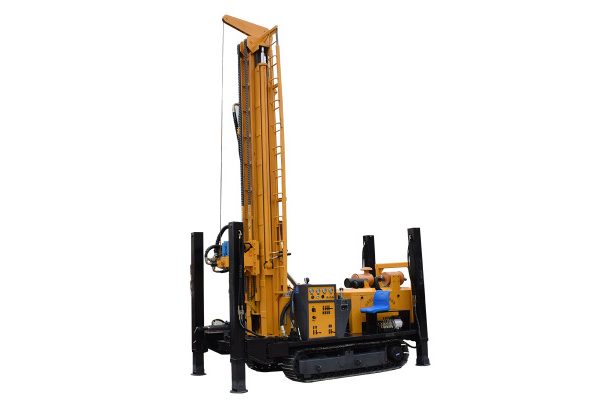

Water Well Drilling Rig
33 Items in Stock
Advantages: 1. Engine: turbocharged engine of Guangxi Yuchai, a well-known brand; 2. Walking device: equipped with new walking motor and reducer, with long service life; 3. Hydraulic oil pump: imported from the United States, the parallel g
Advantages:
1. Engine: turbocharged engine of Guangxi Yuchai, a well-known brand;
2. Walking device: equipped with new walking motor and reducer, with long service life;
3. Hydraulic oil pump: imported from the United States, the parallel gearbox is designed to separate the oil pump, providing sufficient and reasonable power distribution. The unique design of the advanced hydraulic system, simple maintenance and low cost;
4. Power head device; The gearbox body is made of one body, the twin motors provide more power, more torque, more durable, less maintenance cost;
5. Drilling rig chassis; Professional excavator chassis, classic durable, large weight bearing, wide chain plate width, small damage to hard pavement;
6. Lifting power; Adopt the designed composite big arm, the big arm is small in volume, long in travel, double oil cylinder lifting force, large tonnage of drilling rig lifting;
7. The lifting arm configured with the body of the drill is equipped with a limited bit device, which is used to protect the safety of the oil cylinder and ensure the safety at work;
8. Each hydraulic oil pipe is covered with a thick protective jacket, making the oil pipe have a longer service life;
Technical Specification:

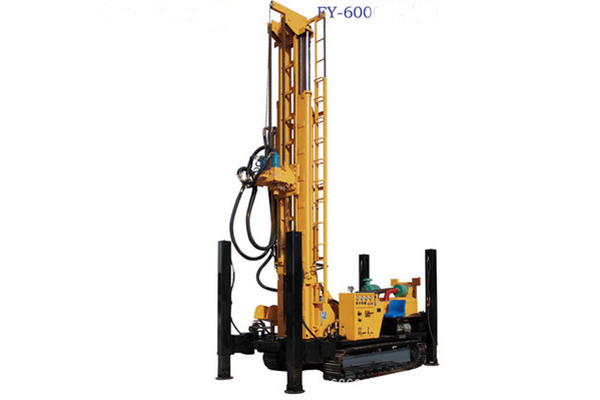

| Model | FY200 | FY300 | FY400 | FY600 |
| The weight(T) | 5.5 | 9 | 10 | 12 |
| Hole diameter(mm) | 140-305 | 140-325 | 140-350 | 140-350 |
| Drilling depth(m) | 200 | 300 | 400 | 600 |
| One-timeadvance length(m) | 3.4 | 6.6 | 6.6 | 6.6 |
| Walking speed(km/h) | 2.5 | 2.5 | 2.5 | 2.5 |
| Climbing angles | 30° | 30° | 30° | 30° |
| Equipped capacitor (KW) | 65 | 84 | 95 | 115 |
| Workingair pressure(Mpa) | 1.7-3.0 | 1.7-3.3 | 1.7-3.5 | 1.7-3.5 |
| Drill pipe diameter(mm) | Ф76 ф89 Ф102 | ф89 Ф102 | Ф76 ф89 Ф102 | Ф76 ф89 Ф102 |
| Drill pipe length(m) | 1.5 2.0 3.0 | 1.5 2.0 3.0 | 1.5 2.0 3.0 | 1.5 2.0 3.0 |
| Rig lifting force(T) | 18 | 28 | 24 | 30 |
| Swing speed(rpm) | 50-70 | 55-115 | 45-115 | 45-115 |
| Swing torque(N.m) | 5000-6500 | 7200-9500 | 8500-10000 | 8500-10500 |
| Dimension(mm) | 3800*1700*2350 | 5500*1950*2780 | 5200*2000*2780 | 5400*2100*2850 |
