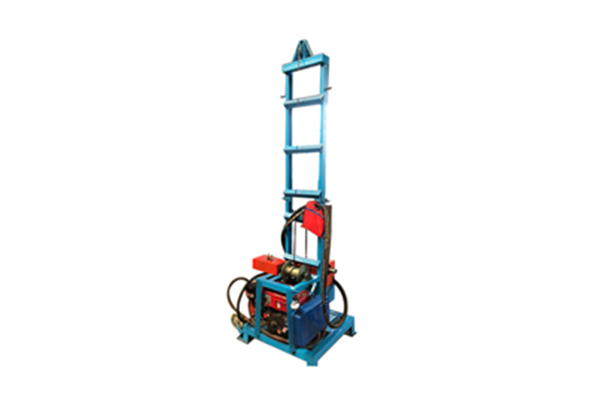

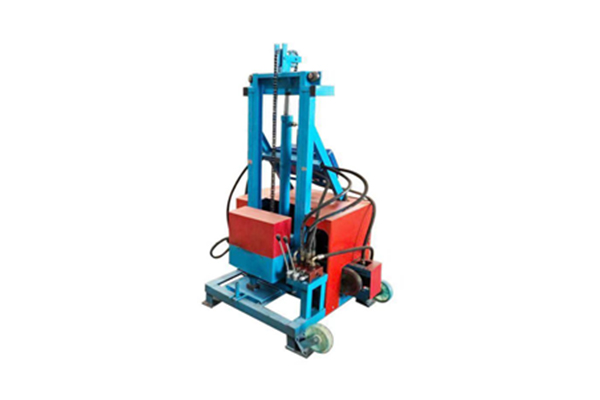

Small Water Drilling Rig YD-150
33 Items in Stock
Features : The new type of drilling machine changes the design of drilling shaft from gear linkage to direct connection, which greatly improves the efficiency of the machine, reduces the failure rate, and meets the needs of drought-resistan
Features :
The new type of drilling machine changes the design of drilling shaft from gear linkage to direct connection, which greatly improves the efficiency of the machine, reduces the failure rate, and meets the needs of drought-resistant irrigation water with small power and low cost. It is one of the advanced and rapid mechanized drilling equipment at present, and integrates the advantages of a variety of machines of the same type to meet the work needs of high efficiency, easy decomposition, light weight and easy transfer. Products have been successfully sold at home and abroad.
| Specifications | |
| Model | YD-150 |
| Drilling depth | 150m |
| Bore diameter | 0-400m |
| Applicable voltage | 220V/380V,gasoline |
| Motor power | 4000W |
| Pump power | 2.2KW |
| Drill pipe diameter | 50mm |
| Drill pipe length | 1.5m |
| Drill pipe replacement | Thread buckle |
| Drilling grinding | Impact rotary |
| Hoisting height | 2meters top of the machine |
| Lifting force | 1000KG |
| Dimensions | 80*80*245cm |
| Weight | 200KG |
