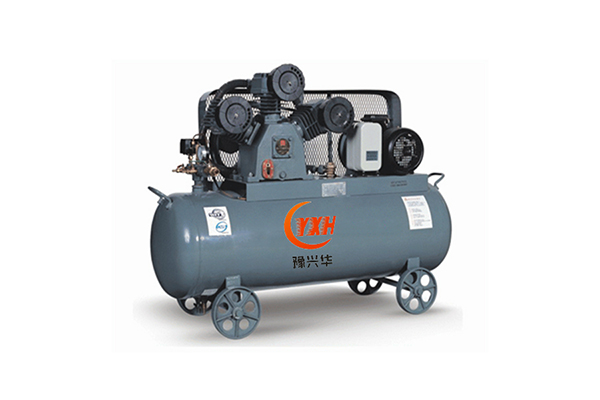

Piston Air Compressor
33 Items in Stock
Features : Smooth lines, bright patent modeling design, reasonable layout of the components, compact structure, configuration of large capacity gas tank; Using advanced surface electrostatic spray process. 1.Crankcase avant-garde cast iron
Features:
Smooth lines, bright patent modeling design, reasonable layout of the components, compact structure, configuration of large capacity gas tank; Using advanced surface electrostatic spray process.

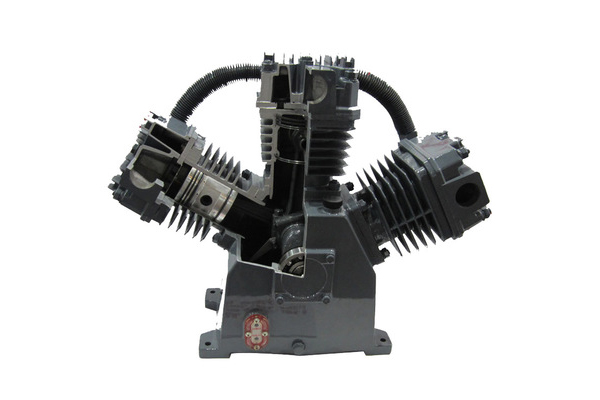

1.Crankcase avant-garde cast iron material crankcase, equipped with oil glasses and can fully release the pressure of the breathing apparatus.
2.The cylinder is made of wear-resisting scale cast iron and is designed with many fins to ensure the best heat dissipation effect.
3.Forged aluminum or nodular iron connecting rod has high strength and is not easy to be deformed. The open-end connecting rod is designed with copper bushing at both ends which is wear-resisting, and the inclined type oil chip design ensures the service life.
4.High strength aluminum alloy piston, reduce the moment of inertia, improve the stability of the body, using two oil scraping ring, two piston ring design, to ensure low fuel consumption, low recovery, improve the compression efficiency.
5.High-strength and wear-resisting crankshaft is equipped with double balance blocks and high-precision bearings to ensure the best balance in operation.
6.Adopt high quality and high efficiency inlet spring valve, small air intake resistance, large air discharge, service life up to 10,000 hours.
Smooth lines, bright patent modeling design, reasonable layout of the components, compact structure, configuration of large capacity gas tank; Using advanced surface electrostatic spray process.
1.Crankcase avant-garde cast iron material crankcase, equipped with oil glasses and can fully release the pressure of the breathing apparatus.
2.The cylinder is made of wear-resisting scale cast iron and is designed with many fins to ensure the best heat dissipation effect.
3.Forged aluminum or nodular iron connecting rod has high strength and is not easy to be deformed. The open-end connecting rod is designed with copper bushing at both ends which is wear-resisting, and the inclined type oil chip design ensures the service life.
4.High strength aluminum alloy piston, reduce the moment of inertia, improve the stability of the body, using two oil scraping ring, two piston ring design, to ensure low fuel consumption, low recovery, improve the compression efficiency.
5.High-strength and wear-resisting crankshaft is equipped with double balance blocks and high-precision bearings to ensure the best balance in operation.
6.Adopt high quality and high efficiency inlet spring valve, small air intake resistance, large air discharge, service life up to 10,000 hours.
Main technical parameters：
| Model No.： | HW4007B | HW5507 | HW7507 | HW10007 | HW15007 | HW20007 |
| Air delivery (m3/min): | 0.4 | 0.55 | 0.75 | 1.05 | 1.55 | 2.15 |
| Working pressure(Mpa) : | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
| Rotation speed(mm) : | 860 | 1050 | 850 | 850 | 950 | 900 |
| Cylinders(mm): | 70*3 | 70*3 | 100*2 | 100*3 |
125*2 110*1 |
125*2 110*1 |
| Piston stroke(mm): | 55 | 55 | 72 | 72 | 80 | 110 |
| Tank(L)； | 120 | 170 | 250 | 320 | 320 | 500 |
| Motor power(kw) : | 3 | 4 | 5.5 | 7.5 | 11 | 15 |
| Lubrication Method: | Splash | Splash | Splash | Splash | Splash | Splash |
| Cooling way : | Air cooled | Air cooled | Air cooled | Air cooled | Air cooled | Air cooled |
| Driven method : | Belt | Belt | Belt | Belt | Belt | Belt |
| Weight: | 215 | 225 | 285 | 335 | 487 | 582 |
| L(mm): | 1340 | 1470 | 1665 | 1690 | 1735 | 1835 |
| W(mm): | 470 | 470 | 500 | 530 | 585 | 635 |
| H(mm): | 935 | 980 | 1090 | 1260 | 1350 | 1460 |
